HYDRAULIC BAR MANIFOLDS

Magnaloy offers a complete line of Inline Bar Manifolds in D03, D05 and D08 NFPA patterns in standard flow and high flow designs in parallel and series circuits. Material selection includes aluminum or ductile iron with many options available.

To complement Magnaloy’s line of manifolds, additional items include IC Manifolds, Subplates, Cover Plates, Valve Adaptors, Tapping Plates, Header Bar Manifolds and Junction Bar Manifolds all available in aluminum or ductile iron and various NFPA patterns.

Bar Manifold Styles

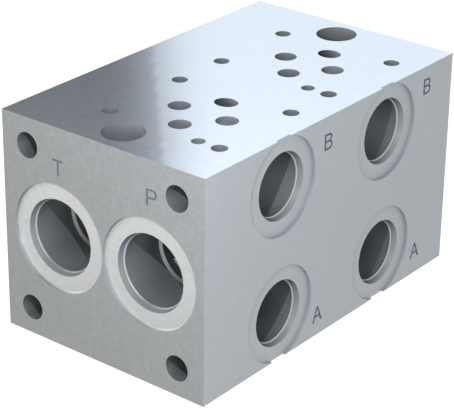

D03 Standard Flow Parallel

  • The efficient design provides excellent flow rates with minimal pressure drop.
  • Standard end mount and through holes make mounting easy and flexible. Also, (when requested) mounting bracket kit BK-A03 (no charge) or flange mount kit FK-03 (additional cost) is available with the manifold as alternative mounting styles.
  • Available with SAE, NPTF, BSPP, BSPT or Metric Threads to cover a wide range of applications.
  • Options include relief valve cavity, bottom PR & TK ports, and gauge port to fit specific circuit requirements.

View Details

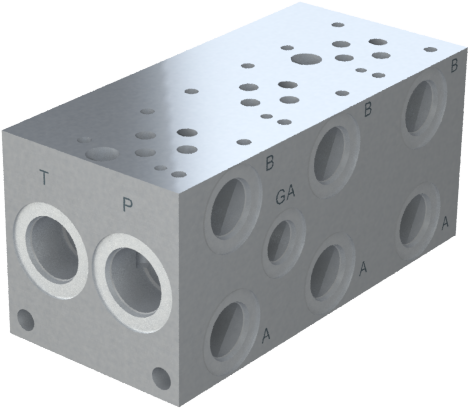

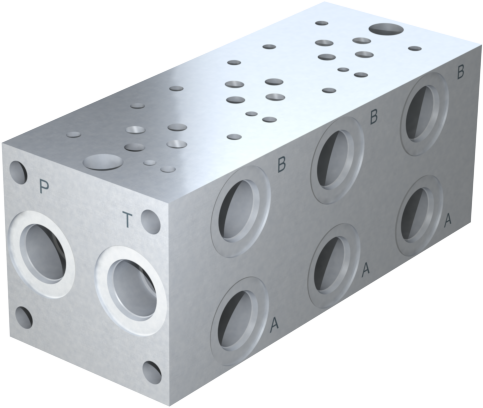

D03 Retro Design Standard Flow Parallel

  • Available with SAE, NPT, BSPP, BSPT or Metric Threads to cover a wide range of applications.
  • 2 1/8” or 4” valve center options allow the manifold to be sized for specific D03 valve types.
  • Adequate clearance for 5/8” tube fittings.
  • Mounting bolt spacing allows standardized mounting pads.
  • Tank and pressure lines may be connected at either end.
  • Standard Gauge Port is 1/4” NPT with “P” Code and #6 SAE with “S” Code (#4 SEA available with G4 Option.

View Details

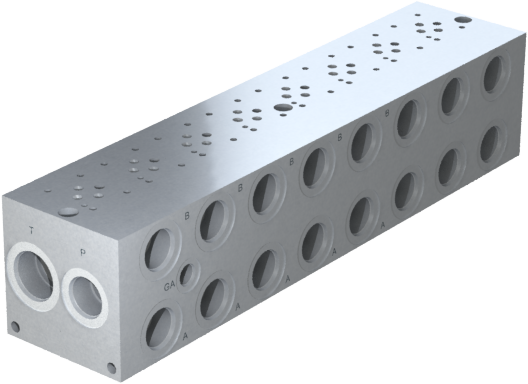

D03 Retro Design High Flow Parallel

  • The higher flow design provides maximum flow rates with minimal pressure drops.
  • 2 1/8” or 4” valve center options allow the manifold to be sized for specific D03 valve types.
  • Standard end mount and through holes make mounting easy and flexible. Also, a mounting bracket kit BKR-AH03 is supplied with the manifold as an alternative mounting style.
  • Available with SAE, NPT, BSPP, BSPT or Metric Threads to cover a wide range of applications.
  • Options include relief valve cavity, bottom PR & TK ports, and gauge ports to fit specific circuit requirements.

View Details

D03 Series

  • Available with SAE, NPT, BSPP, BSPT or Metric Threads to cover a wide range of applications.
  • Adequate clearance for 5/8” tube fittings.
  • Mounting bolt spacing allows standardized mounting pads.
  • Tank and pressure lines may be connected at either end.

View Details

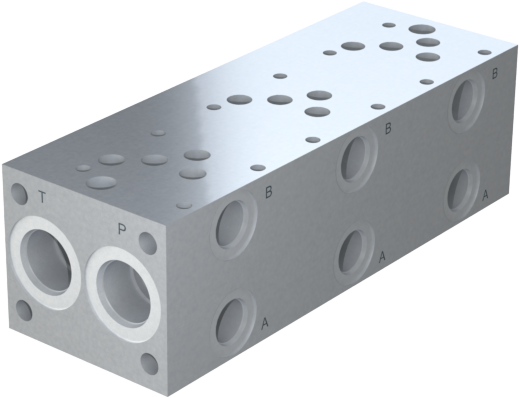

D05 Standard Flow Parallel

  • The efficient design provides flow rates with minimal pressure drops.
  • 3 1/4” or 5” valve center options allow the manifold to be sized for specific D05 valve types.
  • Standard end mount and through holes make mounting easy and flexible. Also, (when requested) mounting bracket kit BK-A05 (no charge) or flange mounting kit FK-A05 (additional cost) are available as alternative mounting styles.
  • Available with SAE, NPT, BSPP, BSPT or Metric Threads to cover a wide range of applications.
  • Options include relief valve cavity, bottom PR & TK ports, and gauge ports to fit specific circuit requirements.

View Details

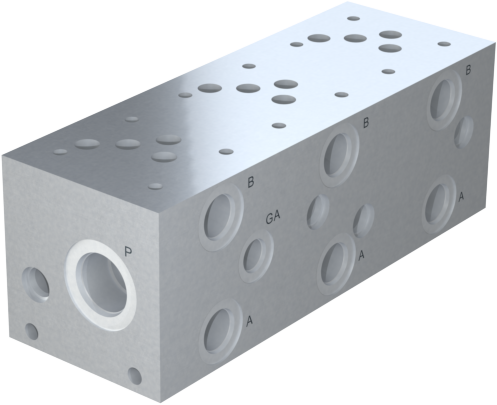

D05 Series

  • Available in Aluminum, Ductile iron, or Stainless Steel.
  • Available with SAE, NPT, BSPP, BSPT or Metric Threads.
  • Options include C-10-2 or T-3A relief cavity, and #4 SAE Gauge Port.
  • 3.25” & 5.00” Spacing, available up to 6 stations.
  • End mounting holes for easy and flexible mounting (BKR-A05 mounting bracket kit included).

View Details

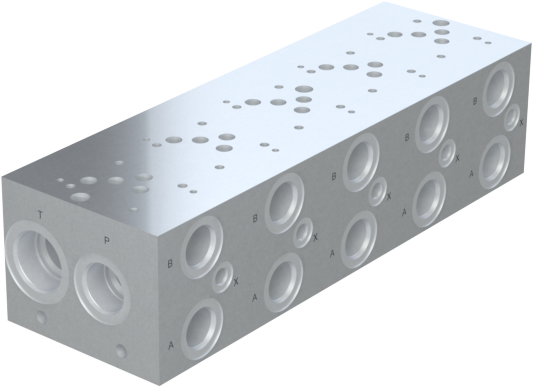

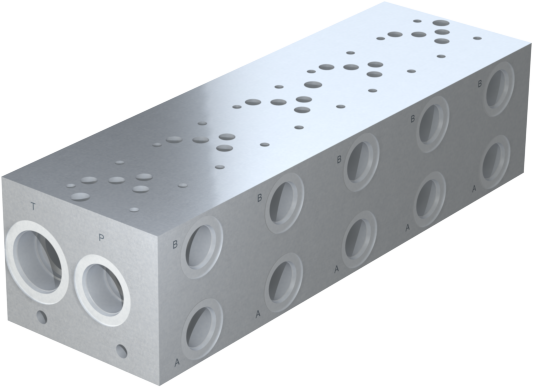

D05 High Flow Parallel

  • The high flow design provides flow rates with minimal pressure drops.
  • 3 1/4” or 5” valve center options allow the manifold to be sized for specific D05 valve types.
  • Standard end mount and through holes make mounting easy and flexible. Also, (when requested) mounting bracket kit BK-A05 (no charge) is supplied as alternative end mounting style.
  • Available with SAE, NPT, BSPP, BSPT or Metric Threads to cover a wide range of applications.
  • Options include relief valve cavity, bottom PR & TK ports, and gauge port to fit specific circuit requirements.

View Details

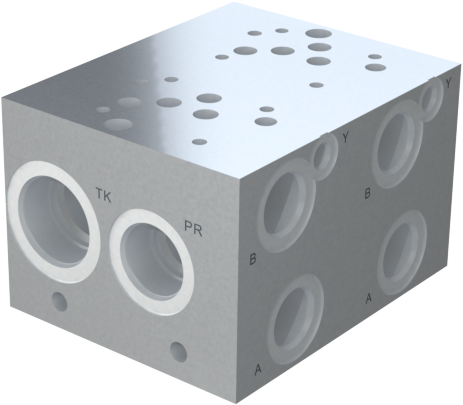

D05 E Alt A Parallel

  • The high flow design provides flow rates with minimal pressure drops.
  • 3 1/4” or 5” valve center options allow the manifold to be sized for specific D05 valve types
  • Standard end mount and through holes make mounting easy and flexible. Also, (when requested) mounting bracket kit BK-A05 (no charge) is supplied as alternative end mounting style.
  • Available with SAE, NPT, BSPP, BSPT or Metric Threads to cover a wide range of applications
  • Options include relief valve cavity, bottom PR & TK ports, and gauge port to fit specific circuit requirements

View Details

D05 H Alt B Parallel

  • The high flow design provides flow rates with minimal pressure drops
  • 3 1/4” or 5” valve center options allow the manifold to be sized for specific D05 valve types
  • Standard end mount and through holes make mounting easy and flexible. Also, (when requested) mounting bracket kit BK-A05 (no charge) is supplied as alternative end mounting style.
  • Available with SAE, NPT, BSPP, BSPT or Metric Threads to cover a wide range of applications.
  • Options include relief valve cavity, bottom PR & TK ports, and gauge port to fit specific circuit requirements.

View Details

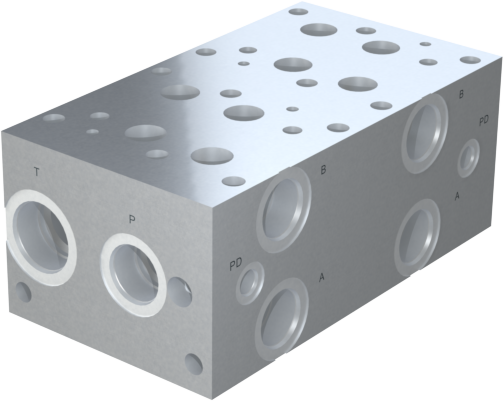

D08 Standard Flow Parallel

  • Available with SAE, NPT, BSPP, BSPT or Metric Threads to cover a wide range of applications.
  • Large pressure and tank passage for maximum flow capacity.
  • Common pilot drain connection.
  • Standard end mount and through holes. Mounting Bracket kit BK-A08 is supplied (no charge) as an alternate end mounting style.
  • Options include relief valve cavities, bottom PR & TK ports, and gauge port and PR & TK isolation.

View Details

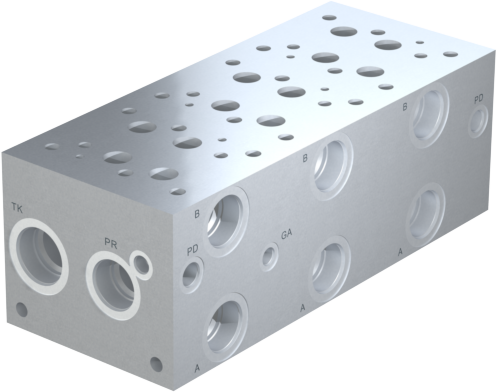

D08 Retro Design High Flow Parallel

  • The high flow design provides maximum flow rates with minimum pressure drops
  • 5 1/4” or 7” valve center option allow the manifold to be sized for specific D08 valve types.
  • Standard end mounting holes make mounting easy and flexible. Also, a mounting bracket kit (BKR-AH08) is supplied with the manifold.
  • Available with SAE, NPT, BSPP, BSPT or Metric Threads to cover a wide range of applications.
  • Options include relief valve cavity, bottom PR & TK ports, and ‘PR’ isolation to fit specific circuit requirements.
  • Standard Gauge Port is 1/4” NPT with “P” code and #6 SAE with “S” Code (#4 SAE available with G4 option).

View Details

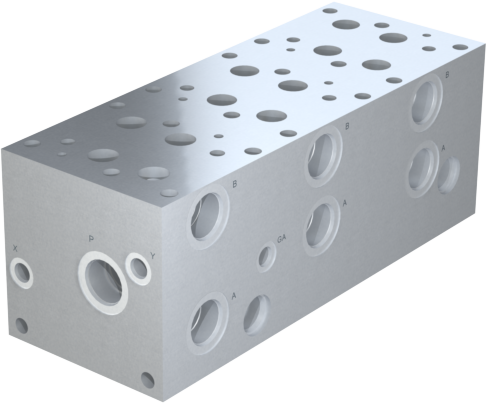

D08 Series

  • Available in Aluminum, Ductile iron, or Stainless Steel.
  • Available with SAE, NPT, BSPP, BSPT or Metric Threads.
  • Common pilot pressure and drain connections.
  • 5.25” & 7.00” Spacing, available up to 3 stations.
  • End mounting holes for easy and flexible mounting (BKR-SS08 mounting bracket included).

View Details

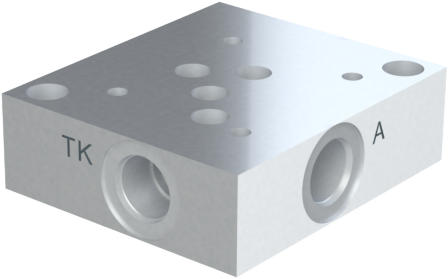

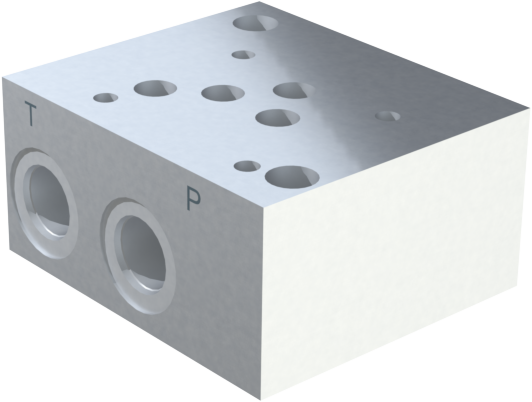

Subplates

Standard Subplate – includes specified NFPA valve pattern mounting on the top surface of the subplate, A & B ports per the specified thread type on the sides of the subplate and pressure and tank ports per the specified thread type on the bottom and side surfaces of the subplate. Mounting provisions include two (2) counter bored through holes on the top surface of the subplate.

Super Saver

  • NFPA D03 Valves – Perimeter Ported
  • NFPA D03 Valves – Down Side Ported
  • NFPA D05 Valves – Perimeter Ported
  • NFPA D05 Valves – Down Side Ported

View Details

Standard Side Ported

  • NFPA D03 Valves – Side Ported
  • NFPA D05 Valves – Side Ported
  • NFPA D05 Valves – High Flow Side Ported
  • NFPA D08 Valves – Side Ported

View Details

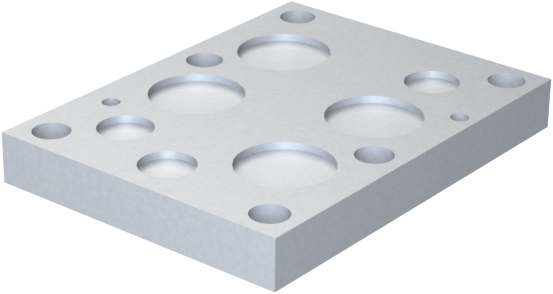

Cover Plates

Standard Cover Plate – includes o’ring pockets on the bottom surface to provide o’ring sealing of the NFPA valve pattern. Mounting provisions include four (4) holes (6 on D08 cover plate) on the top surface of the cover plate. Mounting hardware, locating pins and viton o’ring are provided.

Series Blank Off – Seals all valve ports and provides the pressure port common to tank port when used as a flush out plate or as a substitute for directional valve in a series circuit.

Parallel Blank Off – Seals and isolates all valve ports when used as a substitute for directional valve. Gauge port option provides pressure and tank line signal ports.

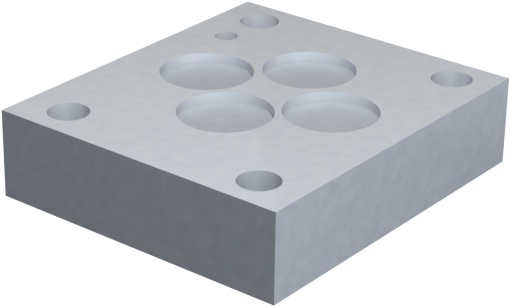

NFPA D03 Valve Stations

  • All Ports Blocked
  • All Ports Blocked, Gauge Ports Provided
  • PR & TK Ports Connected for Series Circuit

View Details

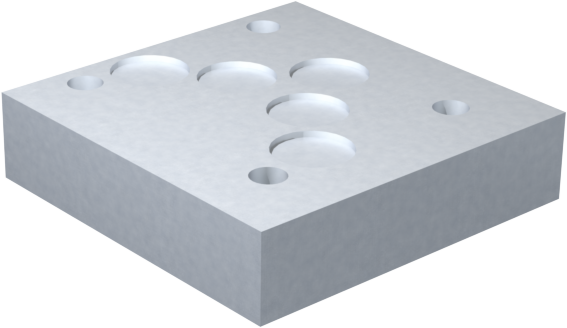

NFPA D05 Valve Stations

  • All Ports Blocked
  • All Ports Blocked, Gauge Ports Provided
  • PR & TK Ports Connected for Series Circuit

View Details

NFPA D08 Valve Stations

  • All Ports Blocked
  • All Ports Blocked, Gauge Ports Provided
  • PR & TK Ports Connected for Series Circuit

View Details

Valve Adapters

We offer the following configurations:

  • NFPA D03 Valve on NFPA D05 Station
  • NFPA D05 Valve on NFPA D08 Station
  • NFPA 2F06 Valve on NFPA 2F07 Station
  • NFPA P-08 Valve on NFPA P-10 Station

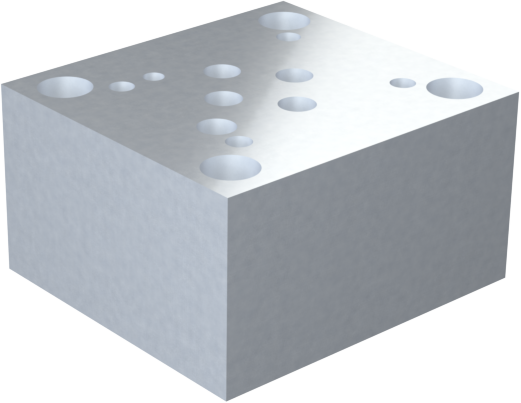

Valve Adaptor – D03 to D05

  • Adapts valve with NFPA D03 pattern to NFPA D05.
  • Orientation (AA), Av common to Am and Bv common to Bm (All ports common).
  • Orientation (BA), Bv common to Am and Av common to Bm (A & B ports reversed).
  • Available in either Aluminum or Steel.
  • Includes mounting hardware (English or Metric) and Viton O-rings.

View Details

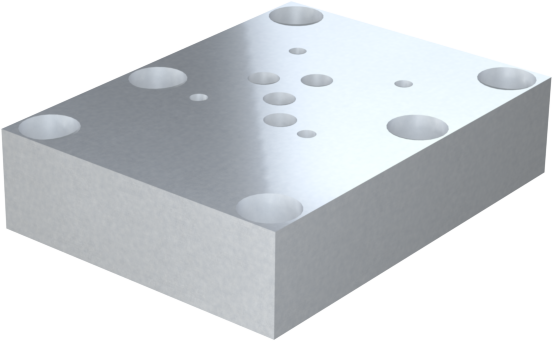

Valve Adaptor – D05 to D08

  • Adapts valve with NFPA D05 pattern to NFPA D08.
  • Orientation (AA), Av common to Am and Bv common to Bm (All ports common).
  • Available in either Aluminum or Steel.
  • Includes mounting hardware (English or Metric), Viton O-rings, and Locating Pins.

View Details

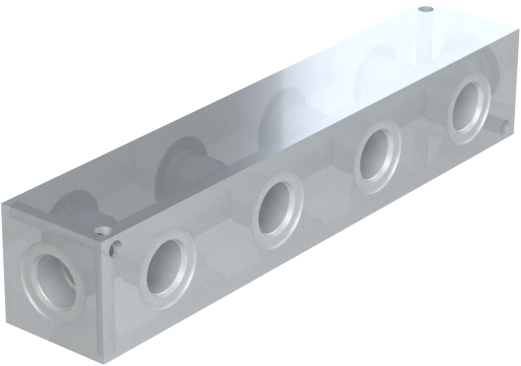

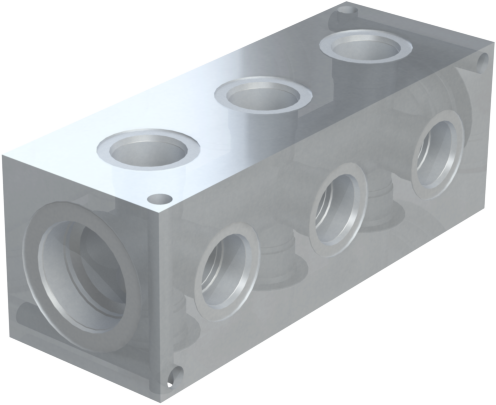

Header Bar Manifolds

Magnaloy’s Header Manifolds are designed with the outlet ports connected to a common inlet port thru the center of the manifold. Header Manifolds are ordered by specifying the End Port (Inlet) Thread size and Side Port (Outlet) Thread size and the Port angle which specifies the orientation of the outlet ports. Metric End and Side Port Threads are also available (consult Factory).

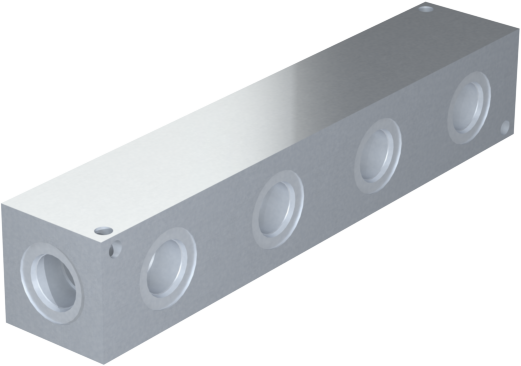

Header Manifold – 0°

  • Connections Out One Side Only (1 Side Port per Station)

View Details

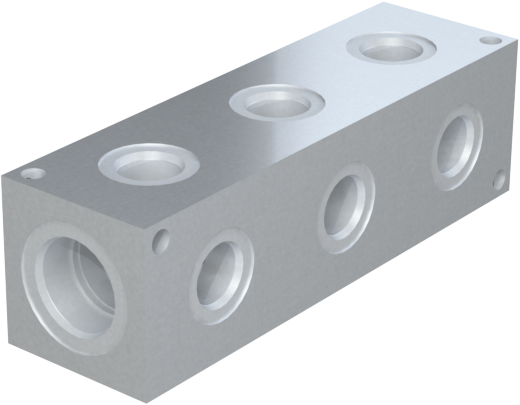

Header Manifold – 90°

  • Side Connections at 90° (2 Side Ports per Station)

View Details

Header Manifold – 180°

  • Side Connection Thru (2 Side Ports per Station)

View Details

Header Manifold – 270°

  • 3 Side Connections Terminating at Manifold’s Center (3 Side Ports per Station)

View Details

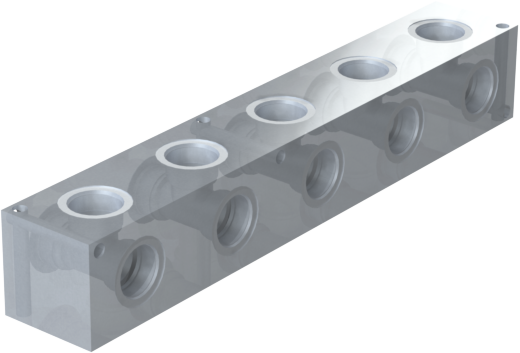

Junction Bar Manifolds

Magnaloy’s Junction Manifolds are designed with varying size Inlet (End) and Outlet (Side) ports to accommodate altering piping sizes and/or directions. Junction Manifolds are ordered by specifying the Inlet Port Thread size and the Outlet Port Thread size and the Port Angle which specifies the orientation of the outlet ports. Metric Inlet and Outlet Port Threads are also available (consult Factory).

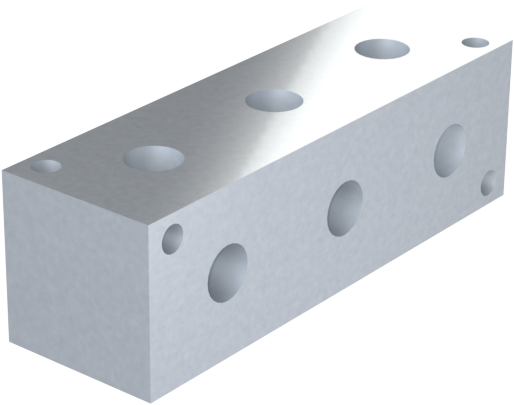

Junction Manifold – 90°

  • 2 Side Connections at 90° (2 Side Ports per Station)

View Details

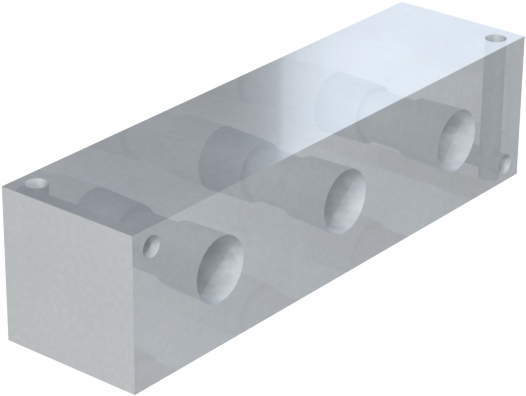

Junction Manifold – 180°

  • Side Connection Thru (2 Side Ports per Station)

View Details

Junction Manifold – 270°

  • 3 Side Connections Terminating at Manifold’s Center (3 Side Ports per Station)

View Details

Custom Manifolds

If you have a required specification for your desired manifold, please feel free to contact our engineering team for a quotation to build a custom manifold.

  • engineering@magnaloy.com

Or, Let Our Configurator Design It For You…
