ALUMINUM PUMP/MOTOR MOUNTS

Magnaloy offers the most complete line of pump/motor mounts in the industry. Mounts are available in aluminum casting or welded steel construction in horizontal and vertical designs for electric motor, gasoline or diesel engine to hydraulic pump applications. All mounts are machined to precision tolerances to assure proper alignment between the motor and pump pilot.

Cast Aluminum Mounts

MAGNALOY CAST ALUMINUM MOUNTS are permanent mold cast of lightweight, high strength aluminum alloy and incorporate many unique design features. Custom molded OSHA orange coupling access covers are included for mounts larger than motor group size 056. These covers are quickly and securely retained via a liptab on one end and a single self-tapping screw on the other. Magnaloy’s horizontal mounts are supplied with a pre-cast drain hole for residual fluids. This unique feature assists in quick detection of leaky seals and other trouble areas.

Using Magnaloy’s Pump/Motor Mounts ensure a lightweight, high strength, precision mount for efficient assembly, quiet operation, accurate shaft alignment and complete coupling concealment.

View Details

NEMA – Horizontal Orientation

Horizontal mounts are available for mounting NEMA C’Face motors in frame sizes 56C through 405TC to most SAE and Metric 2 and 4 bolt pump flanges.

056

Fits NEMA Frames

56C, 143TC/145TC, 182UC/184UC

  • Standard, custom, & metric pump face available
  • Available in a variety of lengths

View Details

182

Fits NEMA Frames

182TC – 256TC, 213UC – 256UC

  • Standard, custom, & metric pump face available
  • Available in a variety of lengths

View Details

284

Fits NEMA Frames

284TC/TSC – 286TC/TSC, 284UC/286UC

  • Standard, custom, & metric pump face available
  • Available in a variety of lengths

View Details

324

Fits NEMA Frames

324TC/TSC – 405TC/TSC, 324UC/USC – 405UC/USC

  • Standard, custom, & metric pump face available
  • Available in a variety of lengths

View Details

NEMA – Vertical Orientation

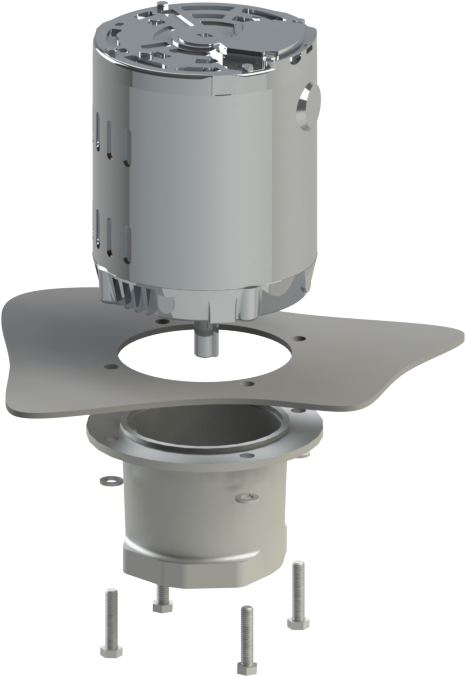

056 – Vertical Application

Fits NEMA Frames

56C, 143TC/145TC, 182UC/184UC

Click image to enlarge.

  • Standard, custom, & metric pump face available
  • Available in a variety of lengths

View Details

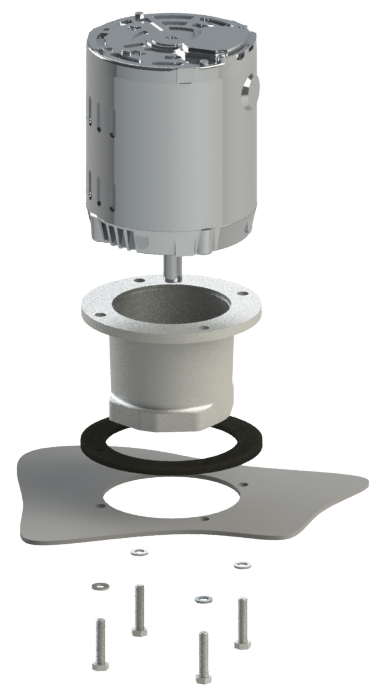

056 – Horizontal In Vertical Application

Fits NEMA Frames

56C, 143TC/145TC, 182UC/184UC

Click image to enlarge.

  • Standard, custom, & metric pump face available
  • Available in a variety of lengths

View Details

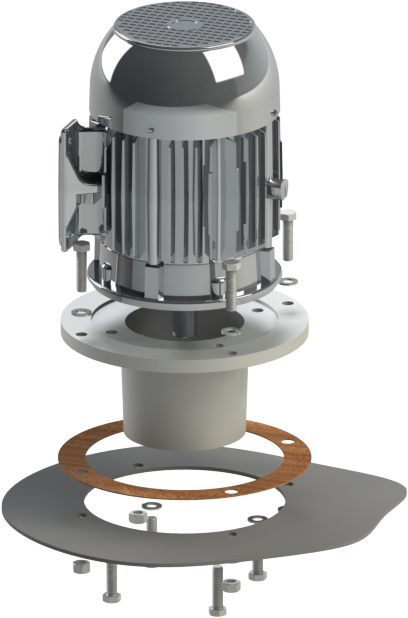

182 – Vertical Application

Fits NEMA Frames

182TC – 256TC, 213UC – 256UC

Click image to enlarge.

  • Standard, custom, & metric pump face available
  • Available in a variety of lengths

View Details

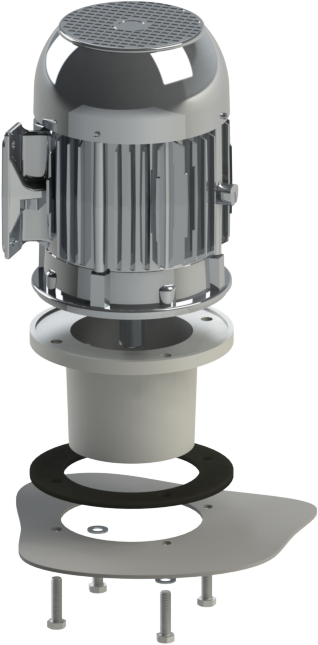

182 – Horizontal In Vertical Application

Fits NEMA Frames

182TC – 256TC, 213UC – 256UC

Click image to enlarge.

  • Standard, custom, & metric pump face available
  • Available in a variety of lengths

View Details

IEC – Metric Motor

130, 180, 230, 250

Fits Metric Frames

B14 – B5 Faces

  • Standard, custom, & metric pump face available
  • Available in a variety of lengths

View Details

IC – Engine Mounts

575, 644, 700, 787

Fits Internal Combustion Engines

  • Standard, custom, & metric pump face available
  • Available in a variety of lengths

View Details

Service Window Covers

Custom molded OSHA orange coupling service window access covers are included for mounts larger than motor group size 056. These covers are quickly and securely retained via a liptab on one end and a single self-tapping screw on the other. Designed to protect personnel in case of a coupling failure.

View Details

Additional Information

Power Unit Design

Power Unit design is greatly simplified by use of the Magnaloy Pump/Motor Mount. Direct mounting of flange mount pumps to NEMA C’Face motors or Pilot mount engines via a Magnaloy Mount assures accurate shaft alignment and eliminates the need for a coupling guard, foot brackets, shims, risers and mounting plate. The result is the easiest to install, most accurate and cost effective method available to mount a pump to a drive unit.

View Details

High Quality

For over 30 years Magnaloy has produced the highest quality flexible drive couplings in the industry. Magnaloy’s long tradition of high quality and immediate delivery has become an industry goal for other manufacturers to attain. Every mount Magnaloy manufactures is guaranteed to be within .003 inch concentric from the motor pilot to the pump pilot. Further, the mounting faces are parallel to each other and perpendicular to the pilot centerline within .002 inch. These exacting tolerances mean accurate shaft alignment which helps prolong bearing, seal and coupling life in addition to reducing noise and vibration. Other mount manufacturers talk about quality, but Magnaloy puts it in writing with measurable standards

View Details

Complete Solution

Magnaloy is the most complete, single source for Horizontal, Vertical and Engine requirements. A large selection of SAE and Metric pump mounting flanges to NEMA motors and I.C. Engines in a variety of lengths are available from stock for immediate shipment. OR special requirements can be met from our complete offering of Welded Steel Mounts. Whatever your mounting needs, you need look no further than Magnaloy

View Details

Custom Mounts

If you have a required specification for your desired mount, please feel free to contact our engineering team for a quotation to build a custom mount.
