STEEL PUMP/MOTOR MOUNTS

Magnaloy offers the most complete line of pump/motor mounts in the industry. Mounts are available in aluminum casting or welded steel construction in horizontal and vertical designs for electric motor, gasoline or diesel engine to hydraulic pump applications. All mounts are machined to precision tolerances to assure proper alignment between the motor and pump pilot.

Steel Mounts

MAGNALOY’S WELDED STEEL MOUNTS are available for special mounting requirements where the standard aluminum mount is not available or where a steel mount is required. These mounts are manufactured with the same quality and precision of the standard aluminum mounts and are guaranteed to meet Magnaloy’s minimum quality measurements. Magnaloy’s Welded Steel Mounts are available for horizontal, vertical and engine applications in a nearly limitless choice of lengths in 1/4 inch increments. MOUNTING KITS are included as with aluminum mounts.

View Details

NEMA Frame Motors

All NEMA Frames

Vertical and Horizontal Applications

  • Standard, custom, & metric pump face available
  • Available in a variety of lengths

View Details

IEC – Metric Motor

All IEC Motor Frames

Vertical and Horizontal Applications

  • Standard, custom, & metric pump face available
  • Available in a variety of lengths

View Details

IC – Engine Mounts

Fits Internal Combustion Engines

Vertical and Horizontal Applications

  • Standard, custom, & metric pump face available
  • Available in a variety of lengths

View Details

Specials

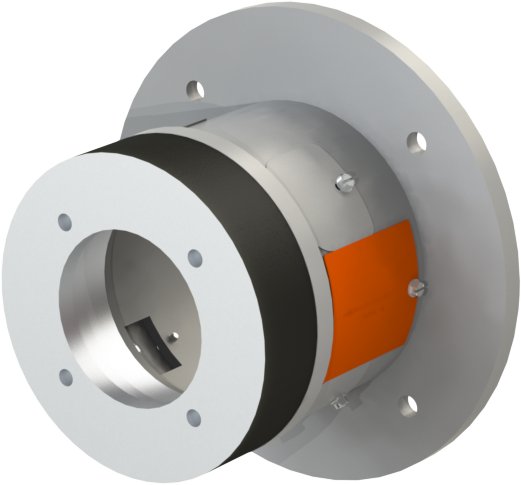

Dampening Ring

Pump Side

  • Standard, custom, & metric pump face available
  • Available in a variety of lengths

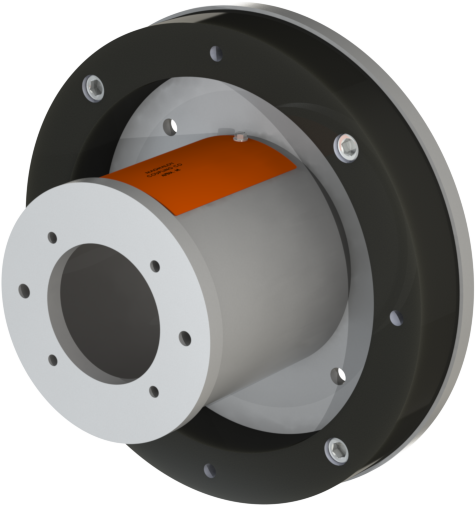

Dampening Ring

Motor Side

  • Standard, custom, & metric pump face available
  • Available in a variety of lengths

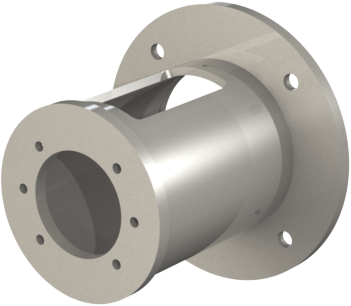

Stainless Steel

304 and 316 Alloy Available

  • Standard, custom, & metric pump face available
  • Available in a variety of lengths

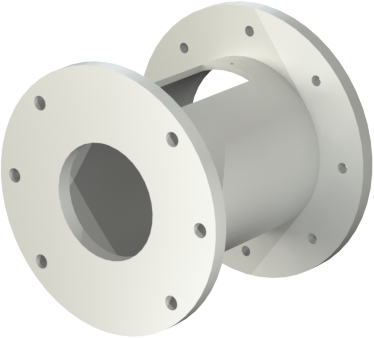

Welded Aluminum

6061 Alloy Available

  • Standard, custom, & metric pump face available
  • Available in a variety of lengths

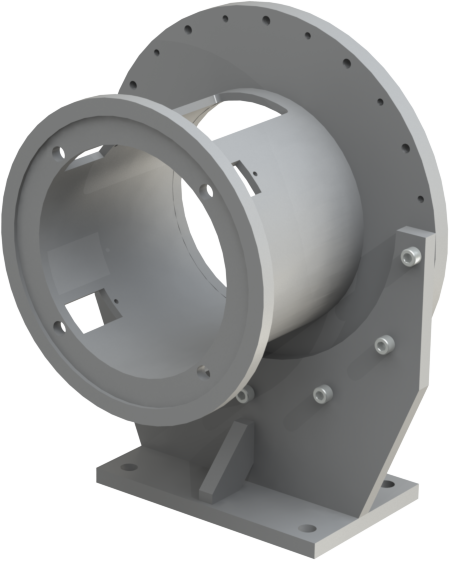

Custom Foot Mounts

For Hydraulic/Footless Motors

  • Standard, custom, & metric pump face available
  • Available in a variety of lengths

Service Window Covers

Custom molded OSHA orange coupling service window access covers are included for mounts larger than motor group size 056. These covers are quickly and securely retained via a liptab on one end and a single self-tapping screw on the other. Designed to protect personnel in case of a coupling failure.

View Details

Special Mounting Features

“M8” Mounting Pattern

Special mounting configuration to allow rotation of the Pump/Motor Mount +/- 45° for pump plumbing connections when pump flange is rotated 45°. Four (4) additional holes are located on the motor end of the mount.

View Details

“45” Mounting Pattern

Special mounting configuration to allow rotation of the Pump 45° on the Pump/Motor Mount for pump plumbing connections when pump flange is rotated 45°. This feature is accomplished by rotating the pump bolt pattern 45° from vertical. This feature is available on all Welded Steel Mounts and 056-USA4F17, SAE AA, SAE A, and ISO 63 & 80 mounts AND 182-USA4F17, SAE AA, SAE A, and ISO 63 & 80 mounts ONLY and is.

View Details

“W” – World Wide Corporation Electric Motor Mounting

When using World Wide Corp Electric Motors in the 182 NEMA Frame size with a Pump/Motor Mount in a vertical application, there is interference between the tank mounting bolts and the case of the motor. This interference is NOT unique to Magnaloy
Pump/Motor Mounts, but Magnaloy has a solution. The tank mounting holes on the Pump/Motor Mount are tapped for 1/2-13 UNC bolts in place of the standard clearance hole. The tank mounting bolts are then inserted form inside the tank through the tank mounting holes in the Pump/Motor Mount. To order this optional mounting configuration, simply specify the World Wide Motor option designator (W) as a suffix to the standard mount part number.

View Details

Additional Information

Power Unit Design

Power Unit design is greatly simplified by use of the Magnaloy Pump/Motor Mount. Direct mounting of flange mount pumps to NEMA C’Face motors or Pilot mount engines via a Magnaloy Mount assures accurate shaft alignment and eliminates the need for a coupling guard, foot brackets, shims, risers and mounting plate. The result is the easiest to install, most accurate and cost effective method available to mount a pump to a drive unit.

View Details

High Quality

For over 30 years Magnaloy has produced the highest quality flexible drive couplings in the industry. Magnaloy’s long tradition of high quality and immediate delivery has become an industry goal for other manufacturers to attain. Every mount Magnaloy manufactures is guaranteed to be within .003 inch concentric from the motor pilot to the pump pilot. Further, the mounting faces are parallel to each other and perpendicular to the pilot centerline within .002 inch. These exacting tolerances mean accurate shaft alignment which helps prolong bearing, seal and coupling life in addition to reducing noise and vibration. Other mount manufacturers talk about quality, but Magnaloy puts it in writing with measurable standards

View Details

Complete Solution

Magnaloy is the most complete, single source for Horizontal, Vertical and Engine requirements. A large selection of SAE and Metric pump mounting flanges to NEMA motors and I.C. Engines in a variety of lengths are available from stock for immediate shipment. OR special requirements can be met from our complete offering of Welded Steel Mounts. Whatever your mounting needs, you need look no further than Magnaloy

View Details

Custom Mounts

If you have a required specification for your desired steel mount, please feel free to contact our engineering team for a quotation to build a custom steel mount.

  • engineering@magnaloy.com

Or, Let Our Configurator Design It For You…
